Model CBH Clutch/Brakes | Industrial Clutch

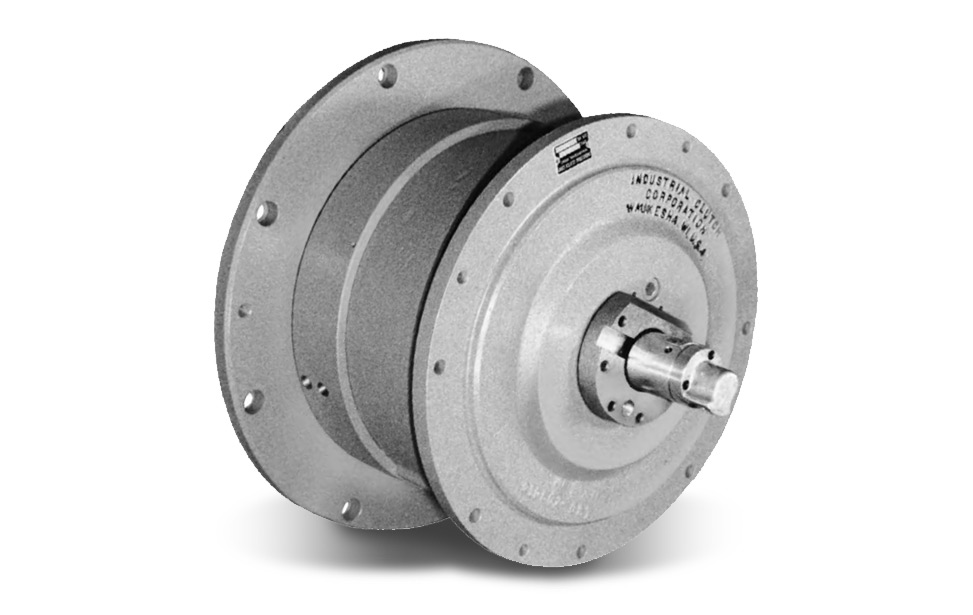

The Model CBH combination clutch/brake is an oil immersed unit with a spring-set brake and hydraulically actuated clutch designed for end of shaft mounting. It is designed for extremely high cycle rates, and for those applications requiring a high degree of stopping accuracy.

The model CBH is ideal for turret punch press conversions.

Product Features

  • Low activation volumes allow cycle rates in excess of 300 cpm.
  • Clutch torque capacities ranging from 12,000 to 70,000 pound-inches.
  • Brake torque capacities ranging from 5,000 to 15,000 pound-inches.
  • Optional high cyclic rate actuation valving.
  • Optional combination cooling/actuation hydraulic power units.
  • Combination Clutch/brakes by design eliminate the possibility of engaging clutch and brake simultaneously.
